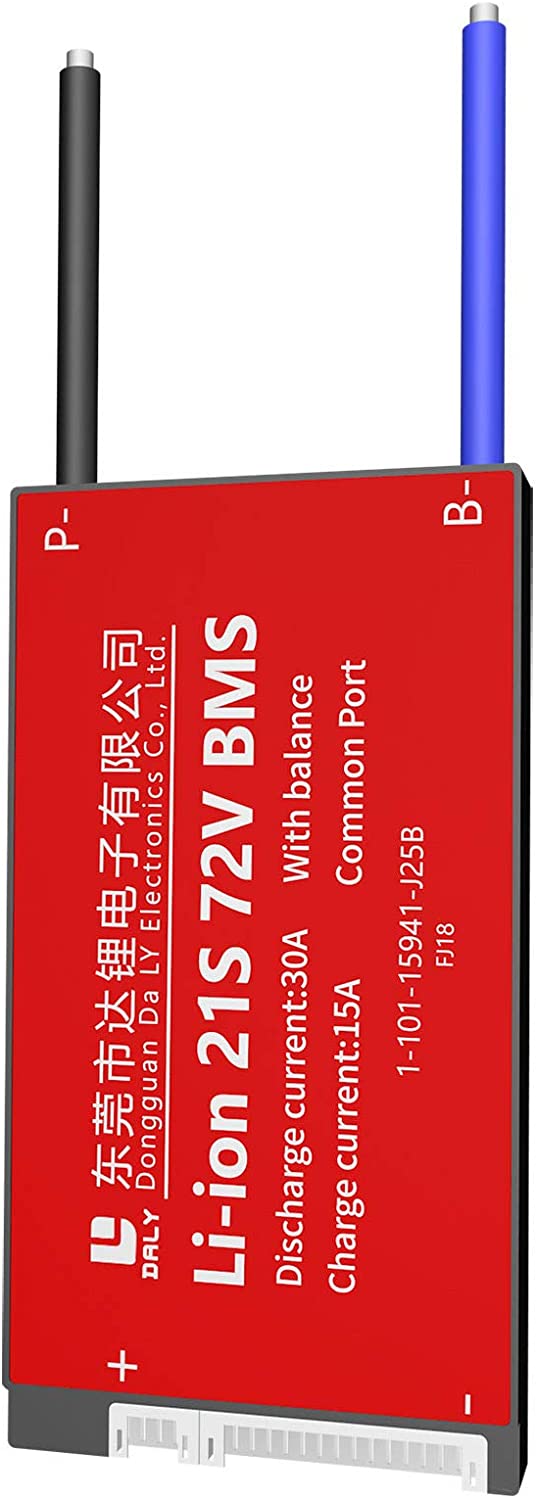

Li-ion BMS PCB 21S 72V 30A Daly Balance Waterproof Battery Management System UK

SKU: IF_015906B1-8-1-1-3-2-1

MPN:


Price:
£53.99

Tax included

Stock:
Only 2 units left

Description

UK Seller. UK Stock
Rapid dispatch within 1 working day to UK and EU

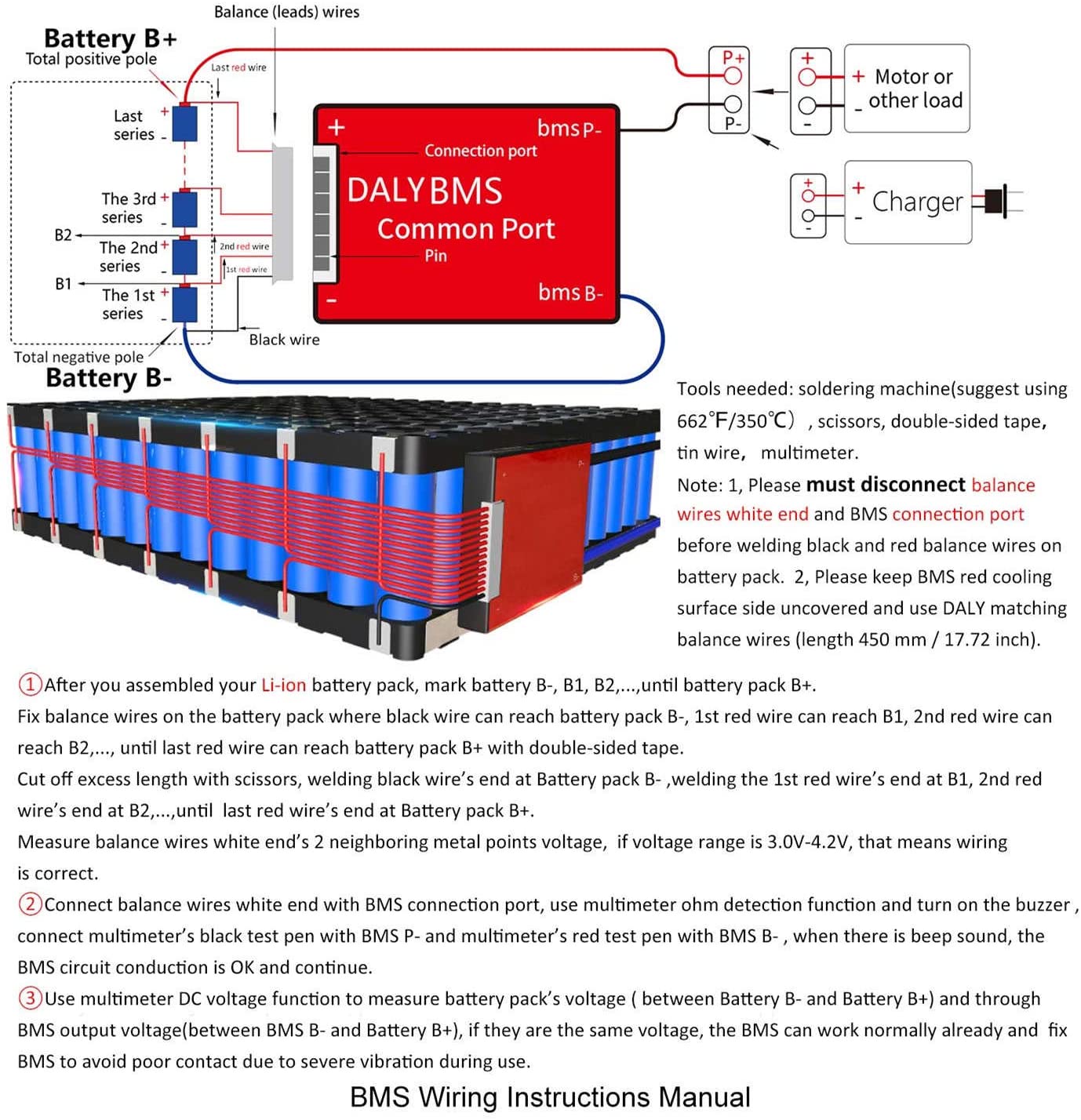

DISCLAIMER: This item is a sophisticated electronic controller. You will need skill and knowledge to install it and use it. You will need to have done research, some available on YouTube - search "eBike School" and "Jehu Garcia" by example to find out what a bms is, what it does and especially how to install it. Wiring diagrams and how to use the bms are found on this listing. It will not be possible to return this item once opened and used, but most especially due to use or damage caused by negligence or lack of knowledge.

21S 72V 30A Li-ion Daly BMS Battery Management System

21S 72V 30A Protection board with balance. Waterproof, dustproof and shockproof. Low resistance, high current and high precision. Short circuit protection conditions External load short circuit.

Model: DL21S (3.7V rated Li-ION Battery NOT for 3.2V Rated LiFePO4)



1. Overview

DL21S 72V 30A  PCB is used for 21 series 72V battery pack.

The main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc.

BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle service life time.

2. Advantages

Uses top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.

Strong load ability, constant discharge current 30A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.

IC itself has power balancing function. The circuit is simple and reliable.

Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection

function is very reliable.Long time short circuit of the load won't affect the PCB and the battery.Temperature protection during charging and discharging.

Extremely low power consumption. The consumption of the whole device is less than 50uA.

PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.
