7S 24V 30A BMS

This bms is for a Lithium-ion battery. Not suitable for a LiFePO4 battery

Specifications

  • Brand Name: ANN
  • Size: L108*W60*T11mm
  • Model Number: 7M30AFK
  • Nominal Capacity: 10-50Ah
  • Type: Li-Ion
  • Voltage: 24V
  • Weight: 0.1KG
  • Application: 24V li-ion battery

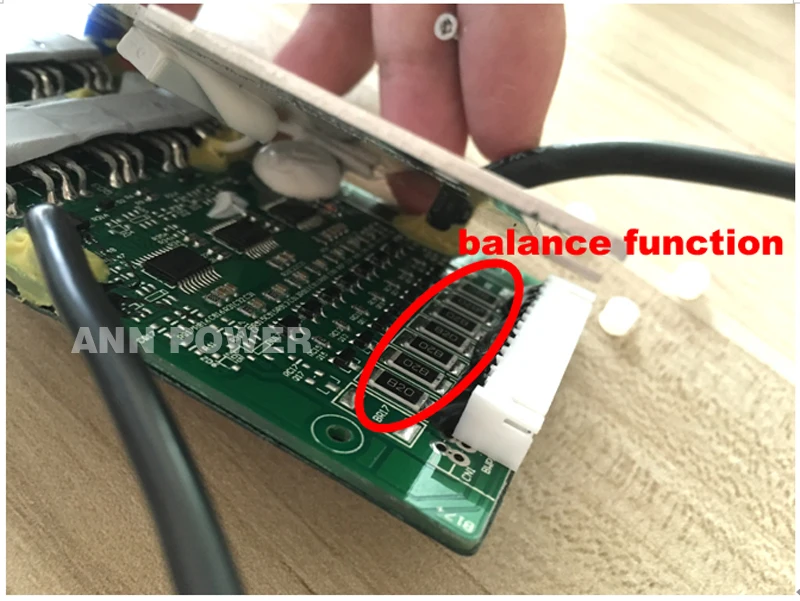

7S 25.9V 30A lithium polymer battery BMS, 30A continuous 100A peak current, 500-800W 24V 30A li-ion battery BMS, balance function.

Features

1. It is suitable for 3.7V cell 7S 24V 10Ah, 20Ah, 30Ah, 40Ah and 50Ah lithium ion batteries pack.

2. With functions of protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection, voltage balance function.

3. This BMS was build with high end electronic components (High End Integrated IC chip and MOSFET ) ,It has highly precision on detection on voltage and current .stable working performance in extremely condition.

Electrical Characteristic (Ta=25 ºC)



No.

Test Item

Min.

Typ.

Max

Unit

1

Input Charging Voltage



29.4



V

2

Input Charging Current



10

15

A

3

Output Discharging Current



30



A

4

Over-Current Discharging Protection

85

100

115

A

5

Current Consumption

10

15

25

uA

6

Balance Current

45

50

55

mA

7

Balance Voltage

4.16

4.18

4.20

V

8

Over-Charge Protection Voltage

4.21

4.25

4.3

V

9

Over-Charge Protection Voltage Release

4.0

4.15

4.2

V

10

Over-Charge Protection Voltage Delay Time

1.0

1.5

2.0

S

11

Over-Discharge Protection Voltage

2.42

2.5

2.58

V

12

Over-Discharge Protection Voltage Release

2.9

3.0

3.1

V

13

Over-Discharge Protection Voltage Delay Time

1.0

1.5

2.0

S

14

Short Circuit Protection Release

Remove the load

15

Impedance



8

15

16

Operating Temperature

-15

+25

+45

ºC

17

Storage Temperature

-20

+25

+30

ºC



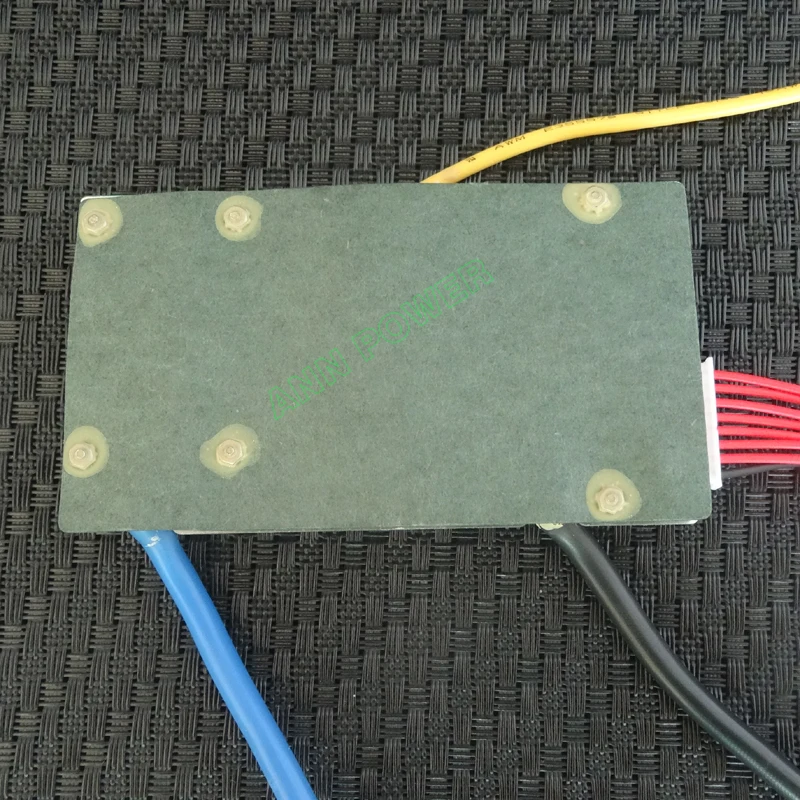

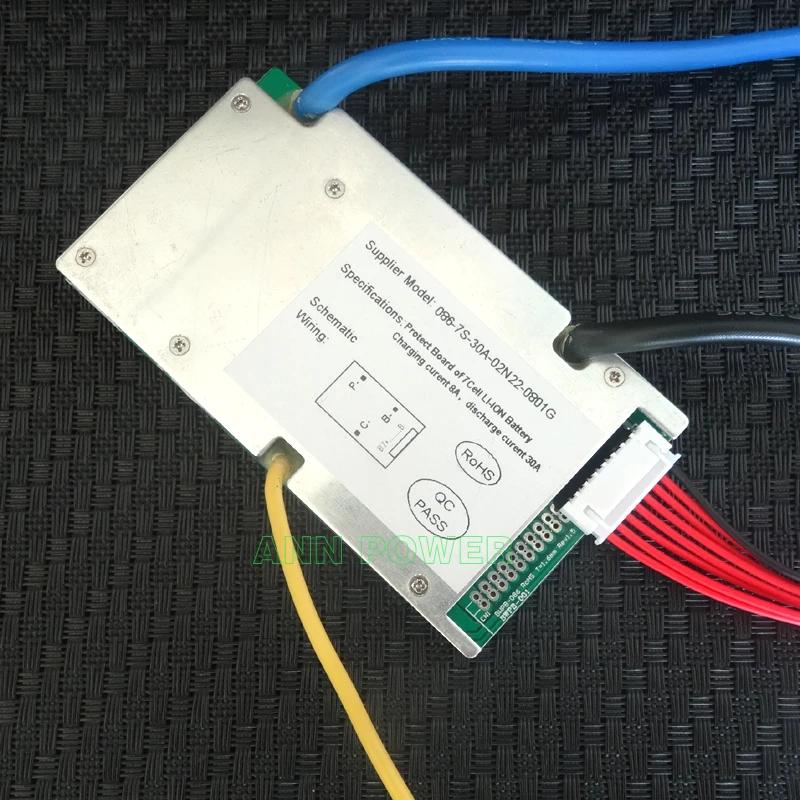

7S 24V 30A BMS 037S 24V 30A BMS 097S 24V 30A BMS 04

7S 24V 30A BMS 014

7S 24V 30A BMS 013

Wiring instructions:

power cable

B-:Connect to battery negative  (Black cable 12AWG  L=150±5mm)

P-:Connect to negative of discharge port (Blue cable  12AWG  L=150±5mm)

C-:Connect to negative of charge port (Black or Yellow cable  14AWG  L=150±5mm)



Voltage monitoring cable

cable type:UL1007   22AWG   L=300±5mm
B-(Black),B7+(Red)
B-(GND)/B1/B2/B3/B4/B5/B6/B7 (B+)


Remarks:

Please connect B- line firstly, and then connect voltage monitoring wiring harness. The last step is to connect charge and discharge lines. If you want to remove them, the order should be reversed. Please pay attention to the connection order, or it will damage the component.
