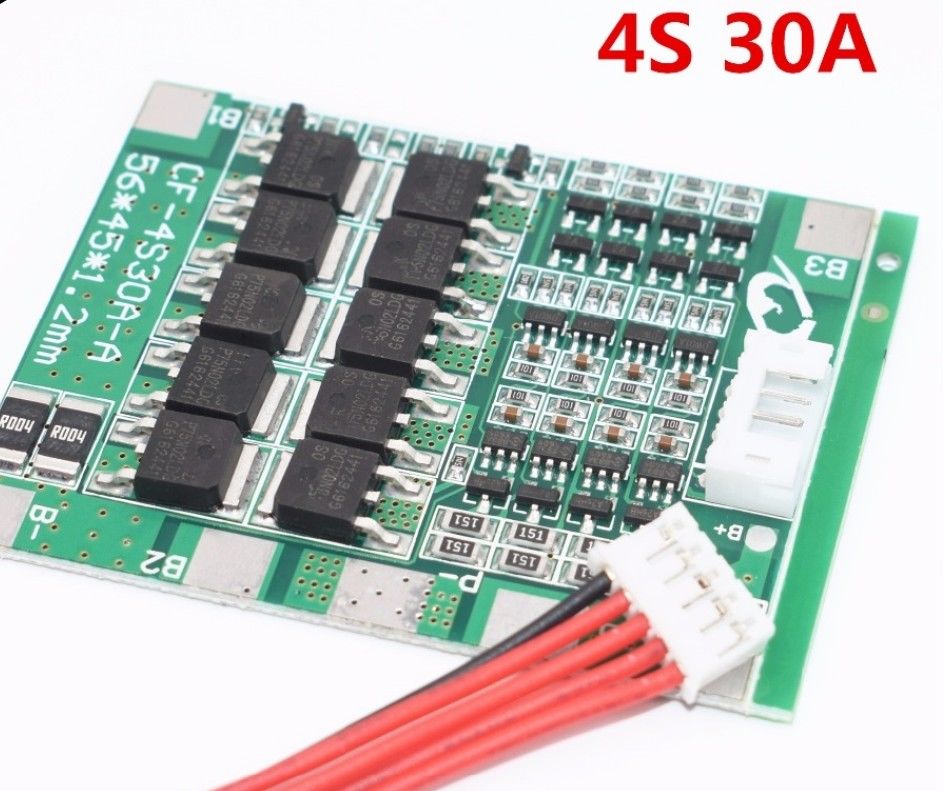

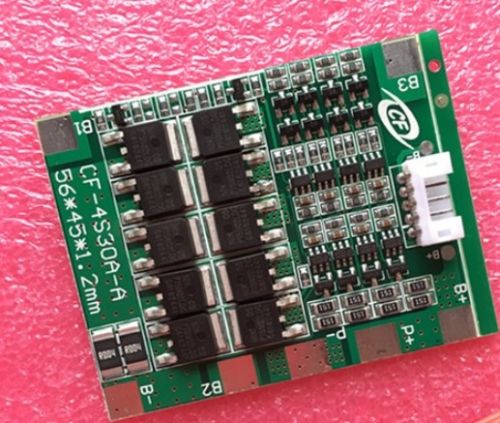

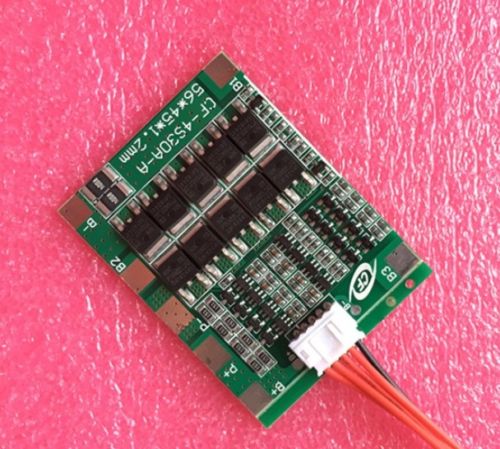

4S 30A 12V BMS Li-ion Battery TENSTAR ROBOT EBike Balanced UK seller UK stock

4S 30A 14.8V Li-ion Lithium 18650 Battery BMS Packs PCB Protection Board Balanced

Name:BMS Protection board

Brand: Tenstar Robot

Model:548604

Specifications
Over charge detection voltage: 4.28+ 0.05 V
Over charging voltage: 4.095-4.195V
Over discharge voltage: 2.55±0.08
Over charge detection delay time 0.1s
Temperature range -30-80
Short circuit detection delay time: 100ms
Over current detection delay time: 500 ms
Balanced current: 60mA
Charging current: 10A

Working current: 30A
Over current: 60A
Short circuit protection function: Yes
Size:45x56mm

Main function:
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function,  balance.

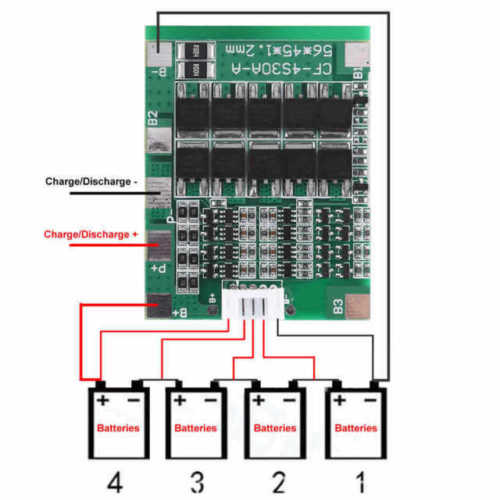

Wiring Schematic:
Image result for 4s bms wiring diagram
