10S 40A 36V BMS constant discharge current and bms with on off switch for lithium 18650 or Lipo Battery BMS

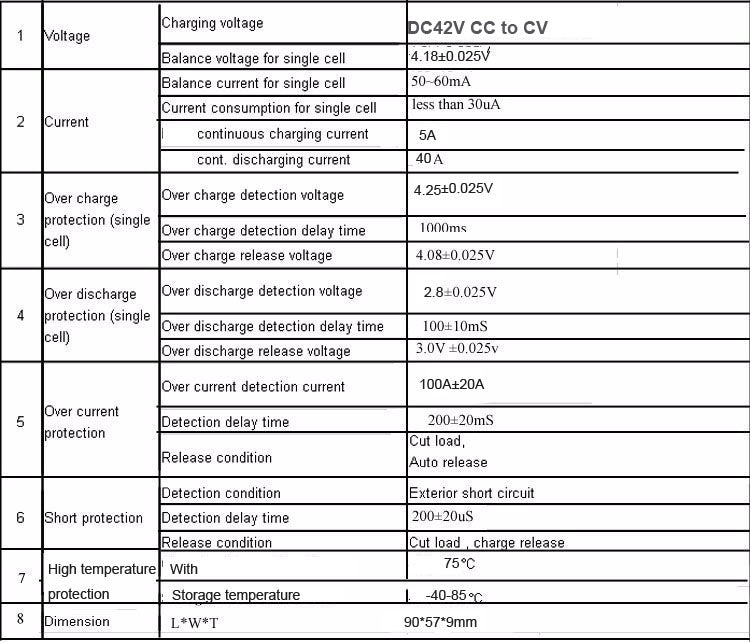

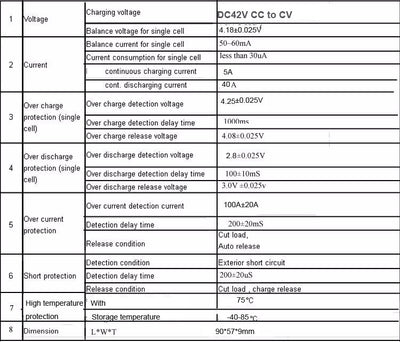

Dissipation Power: less than 25uA
Model Number: LLT-SP10S001v1
Type: Voltage Regulator
is_customized: Yes
Supply Voltage: 42V
Brand Name: LiRooter
Item : 10S lithium ion battery BMS
Constant discharge current : 5A
Full charged voltage: 42V
Size: 90*57*9mm
Charge and discharge : Different charge and discharge port
Constant discharge current : 40A
Discharge switch : With
Balance fucntion : With
Charge port protection : With

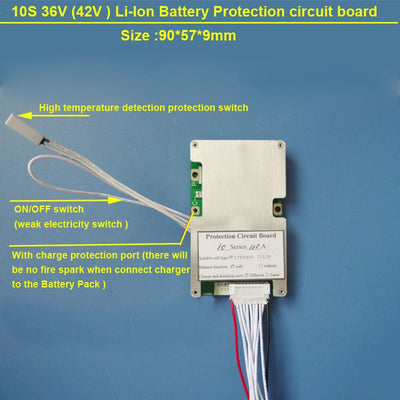

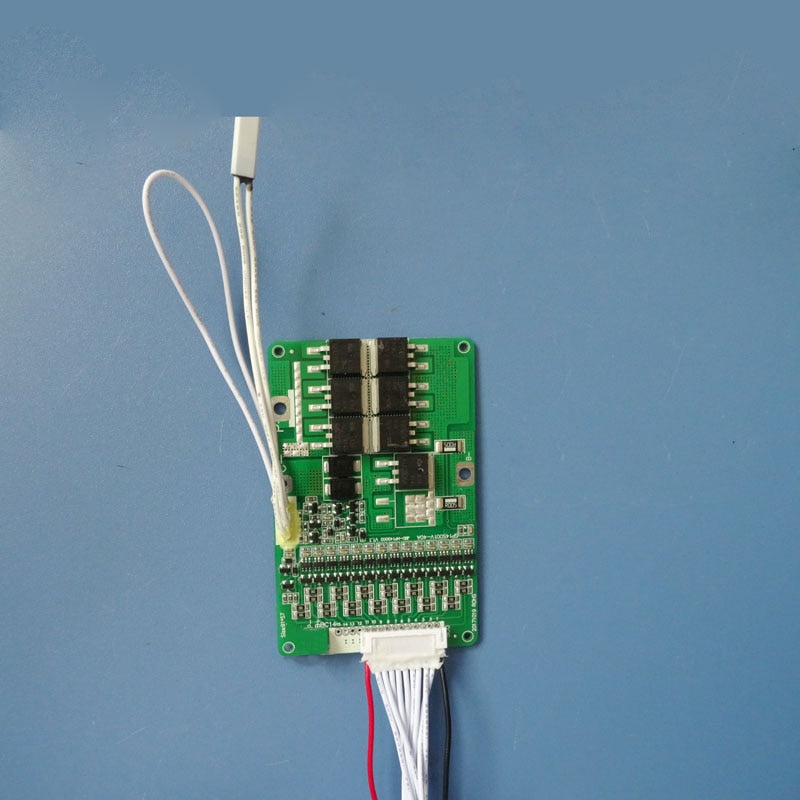

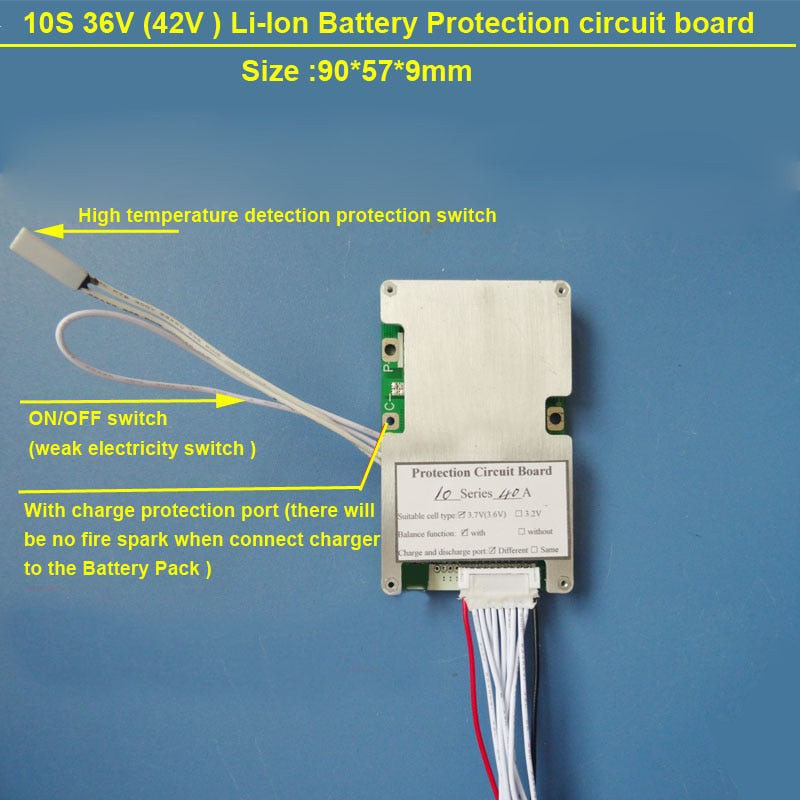

This is The PCB for 10series (42v)l ithium ion battery pack with 5A constant charge and 40A discharge current ,

Dimension : L*W*H= 90*57*9mm .the charge and discharge port is different.

5

1) This PCB board has adopted high end manage IC and Mosfet to obtain more stable and reliable working performance during charge

and discharge

2) PCB board has 40A constant current ,and with a capability of handle larger current with a short time

3) With weak electricity switch to control the discharge to prevent the drain of current during work-off time

4) With charge port protection function , no fire spark with occur when conenct your charger to this PCB board , it will be more safer

for our clients .

5) With Balance function and over-charge ,over-discharge , over-current protection ,short protection etc .
