7S 24V 15A BMS lithium-ion battery 18650 Ebike E-bike li-ion

UK Seller. UK Stock
Rapid dispatch within 1 working day to UK and EU

Product Details:
Item specifics
  • Brand Name:ANN
  • Model Number:24V7S15A01
  • Size:L70*W51.5*11mm
  • Nominal Capacity:5-30Ah
  • Voltage:24V
  • Weight:0.08KG
  • Type:7S 24V Li-ion battery BMS
  • Application:Li-ion battery
  • Working Current:15A
  • Number in series:7S
  • Battery Nominal Voltage:24V
  • Size:L70*W51.5*11mm
  • Power Voltage:24V
  • is_customized:Yes
  • Components:Other
  • Composed Type:7S
Product Description

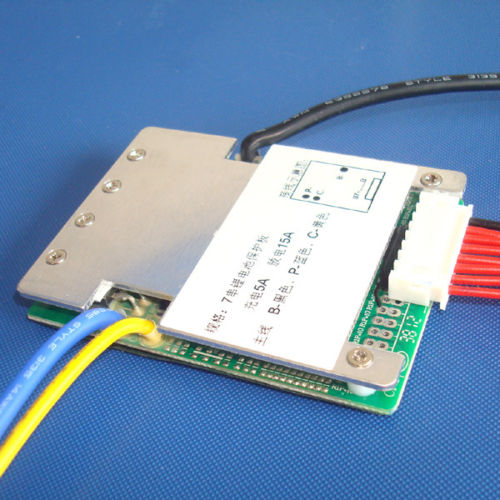

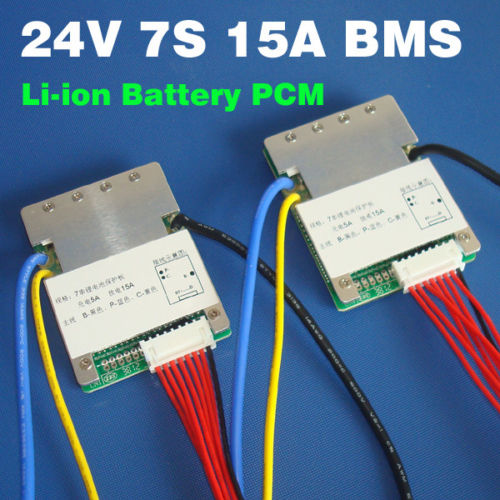

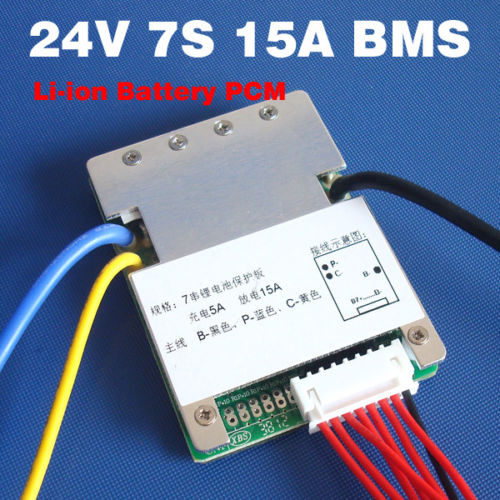

7S 24V 15A lithium ion battery BMS, 24V(25.9V) E-bike Battery BMS/PCM, li-ion battery protection board.

Features

1. It is suitable for 7S 24V li-ion battery.

2. With functions of protection from voltage, current detection, including over-current, overvoltage, under-voltage and short circuit protection.

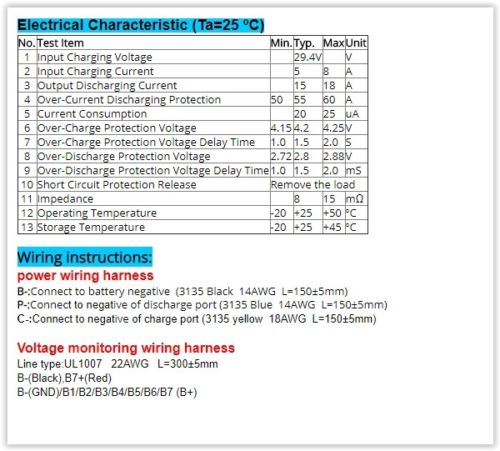

Electrical Characteristic (Ta=25 ºC)

No.

Test Item

Min.

Typ.

Max

Unit

1

Input Charging Voltage



29.4V



V

2

Input Charging Current



5

8

A

3

Output Discharging Current



15

18

A

4

Over-Current Discharging Protection

50

55

60

A

5

Current Consumption



20

25

uA

6

Over-Charge Protection Voltage

4.15

4.2

4.25

V

7

Over-Charge Protection Voltage Delay Time

1.0

1.5

2.0

S

8

Over-Discharge Protection Voltage

2.72

2.8

2.88

V

9

Over-Discharge Protection Voltage Delay Time

1.0

1.5

2.0

mS

10

Short Circuit Protection Release

Remove the load

11

Impedance



8

15

12

Operating Temperature

-20

+25

+50

ºC

13

Storage Temperature

-20

+25

+45

ºC

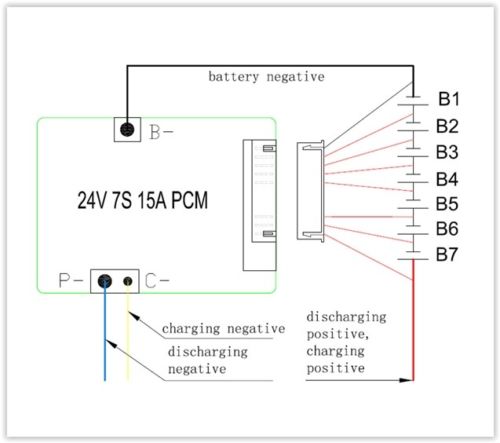

Wiring instructions:

power wiring harness

B-:Connect to battery negative  (3135 Black  14AWG  L=150±5mm)

P-:Connect to negative of discharge port (3135 Blue  14AWG  L=150±5mm)

C-:Connect to negative of charge port (3135 yellow  18AWG  L=150±5mm)



Voltage monitoring wiring harness

Line type:UL1007   22AWG   L=300±5mm
B-(Black),B7+(Red)
B-(GND)/B1/B2/B3/B4/B5/B6/B7 (B+)




7S 15A PCM 05.jpg
7S 15A PCM 08.jpg
7S 15A PCM 09.jpg
7S 15A PCM 03.jpg
