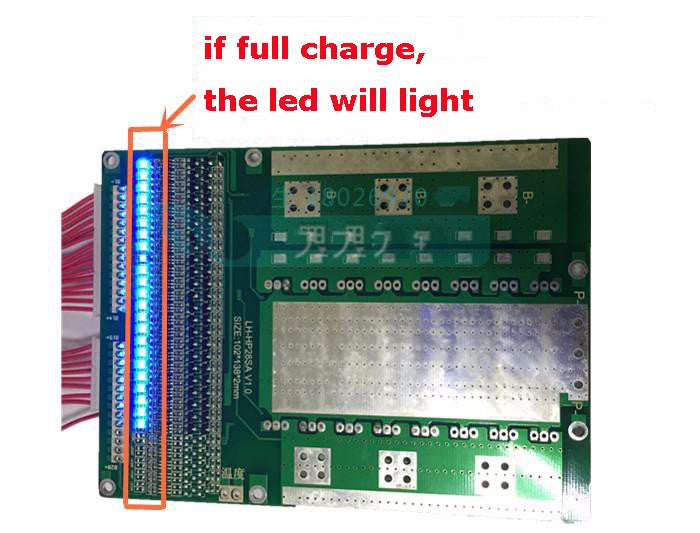

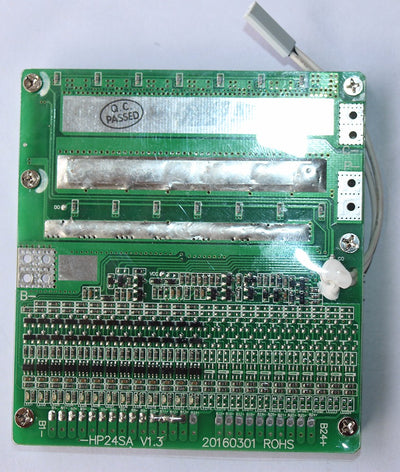

12S 60A version S lipo lithium Polymer BMS/PCM/PCB battery protection board for 12 Packs 18650 Li-ion Battery Cell w/ Balance




Tax included Shipping calculated at checkout

Sold out

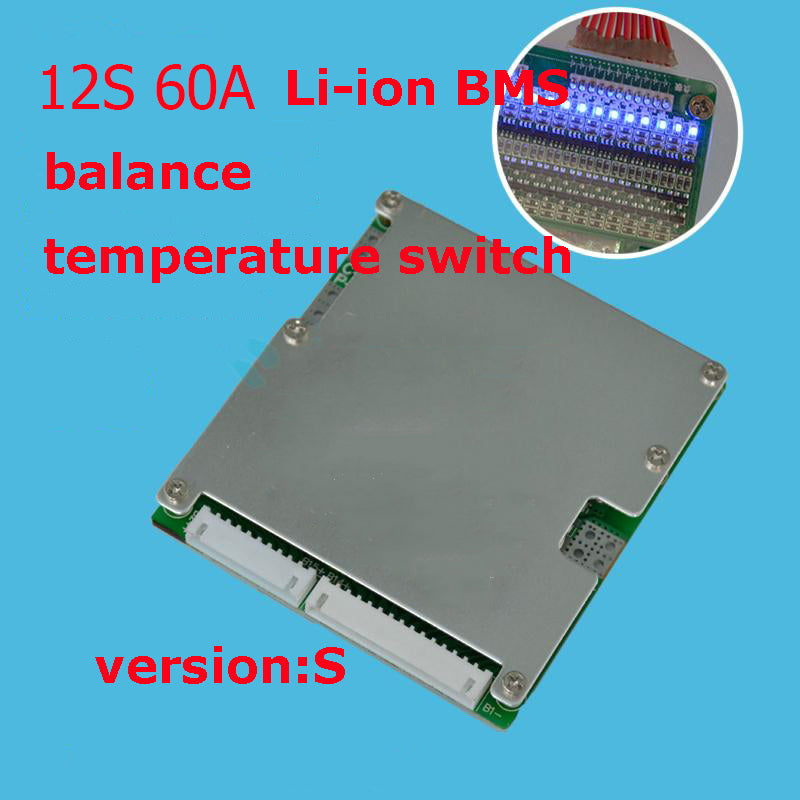

12S 60A  lipo lithium Polymer BMS/PCM/PCB battery protection circuit board for 12 Packs 18650 Li-ion Battery Cell  with Balance with temperature switch


1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.

60A version:  continuous work current 60A, over current protect is 60*2=120A

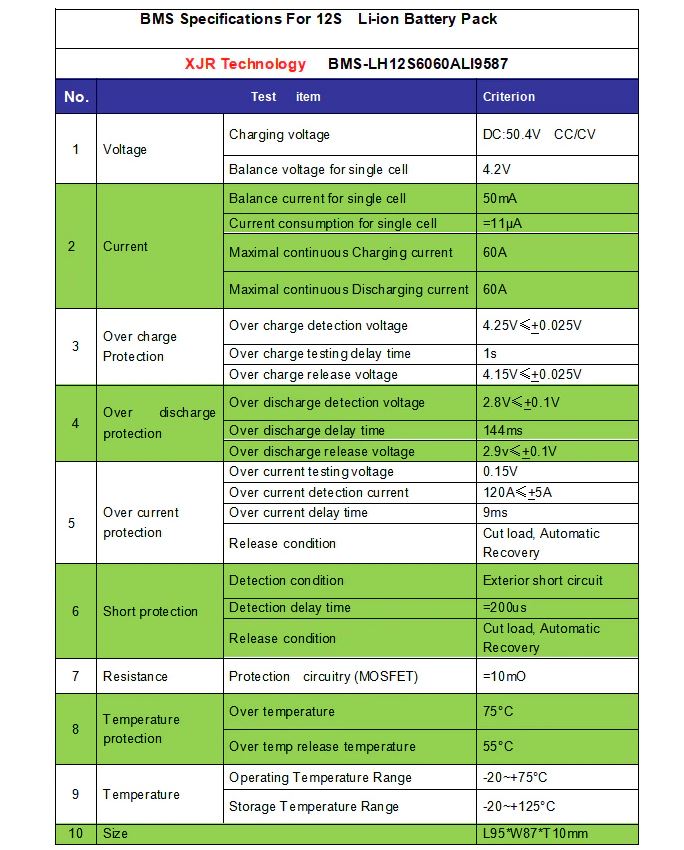

60A Parameter:
over charge: 4.25V
over discharge: 2.8V
charge voltage: 4.2V * 12 = 50.4V
continuous work current: 60A
over current: 120A
balance voltage: 4.2V
balance current: 50mA

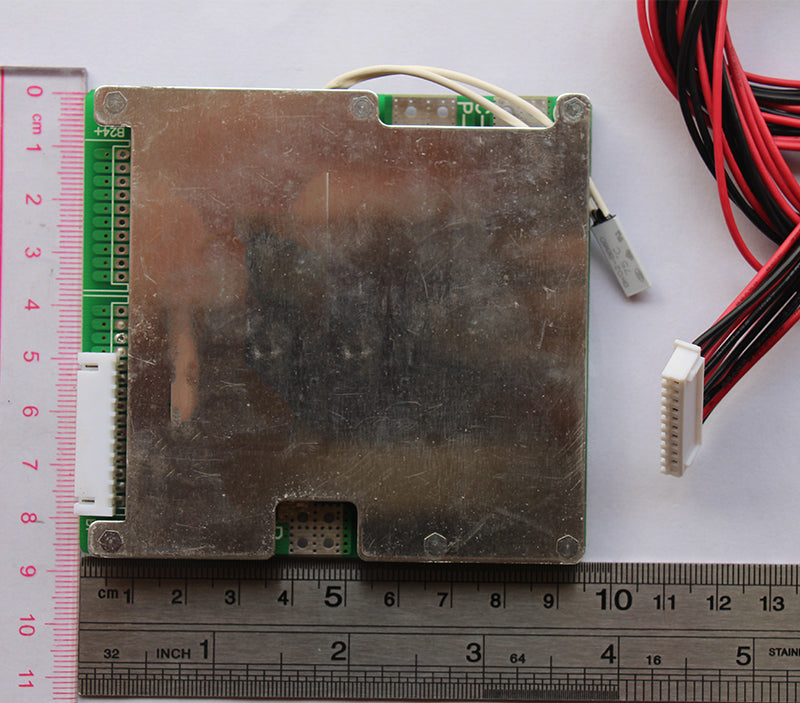

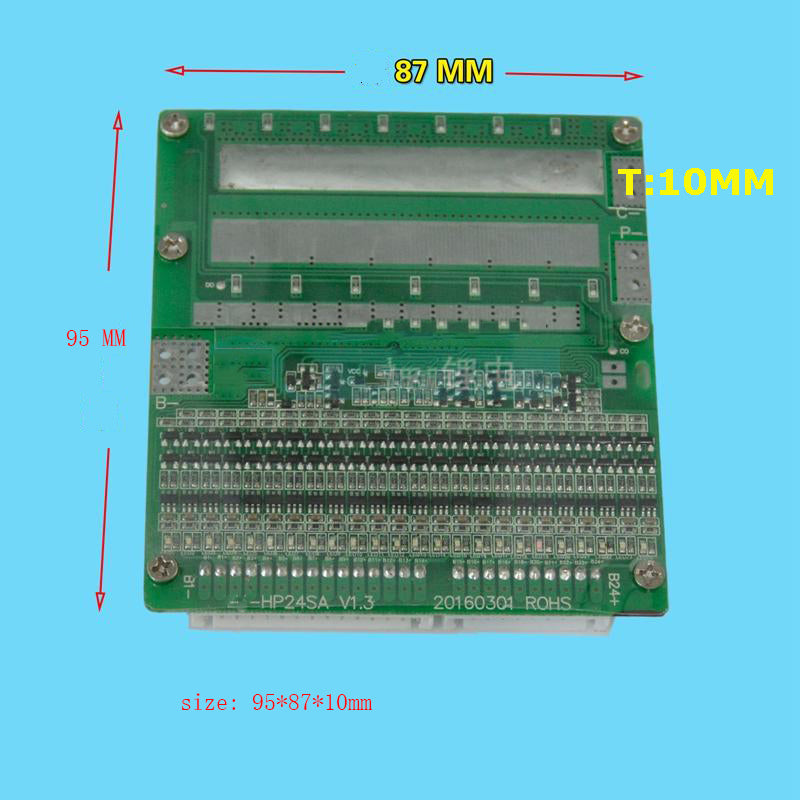

size:  95mm * 87mm * 10mm
