Description
Feature

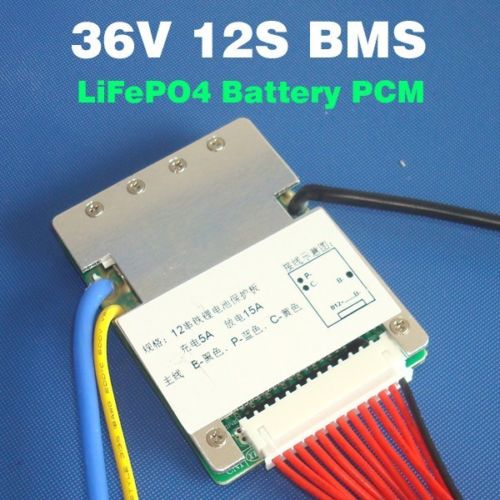

1. It is suitable for 12S 36V lifepo4 battery.
2. With functions of protection from voltage, current and temperature detection, including over-current, overvoltage, balance function, under-voltage and short circuit protection.
Electrical Characteristic (Ta=25 ºC)
|
No. |
Test Item |
Min. |
Typ. |
Max |
Unit |
|
1 |
Input Charging Voltage |
|
43.8V |
|
V |
|
2 |
Input Charging Current |
|
5 |
8 |
A |
|
3 |
Output Discharging Current |
|
15 |
18 |
A |
|
4 |
Over-Current Discharging Protection |
50 |
55 |
60 |
A |
|
5 |
Current Consumption |
|
20 |
25 |
uA |
|
6 |
Over-Charge Protection Voltage |
3.8 |
3.85 |
3.9 |
V |
|
7 |
Over-Charge Protection Voltage Delay Time |
1.0 |
1.5 |
2.0 |
S |
|
8 |
Over-Discharge Protection Voltage |
2.2 |
2.3 |
2.4 |
V |
|
9 |
Over-Discharge Protection Voltage Delay Time |
1.0 |
1.5 |
2.0 |
mS |
|
10 |
Short Circuit Protection Release |
Remove the load |
|||
|
11 |
Impedance |
|
8 |
15 |
mΩ |
|
12 |
Operating Temperature |
-20 |
+25 |
+50 |
ºC |
|
13 |
Storage Temperature |
-20 |
+25 |
+45 |
ºC |
