12S 36V 15A LiFePO4 battery BMS balance function E-bike Ebike

Feature

1. It is suitable for 12S 36V lifepo4 battery.

2. With functions of protection from voltage, current and temperature detection, including over-current, overvoltage, balance function, under-voltage and short circuit protection.



Electrical Characteristic (Ta=25 ºC)

No.

Test Item

Min.

Typ.

Max

Unit

1

Input Charging Voltage



43.8V



V

2

Input Charging Current



5

8

A

3

Output Discharging Current



15

18

A

4

Over-Current Discharging Protection

50

55

60

A

5

Current Consumption



20

25

uA

6

Over-Charge Protection Voltage

3.8

3.85

3.9

V

7

Over-Charge Protection Voltage Delay Time

1.0

1.5

2.0

S

8

Over-Discharge Protection Voltage

2.2

2.3

2.4

V

9

Over-Discharge Protection Voltage Delay Time

1.0

1.5

2.0

mS

10

Short Circuit Protection Release

Remove the load

11

Impedance



8

15

12

Operating Temperature

-20

+25

+50

ºC

13

Storage Temperature

-20

+25

+45

ºC

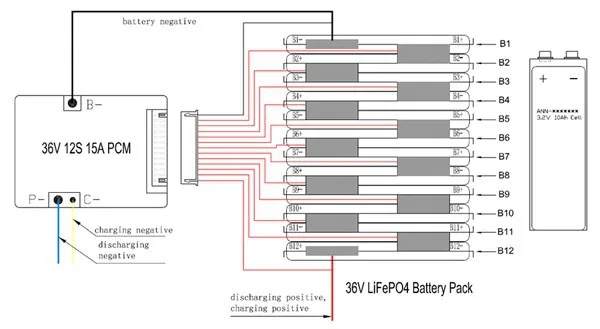

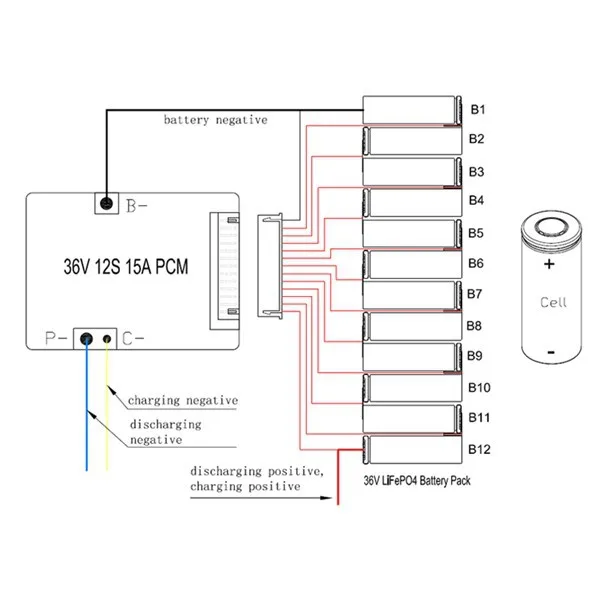

36V 12S 15A 0512S 15A PCM 0212S 15A PCM 0412S 15A PCM 0612S 15A PCM 0512S 15A PCM 08
