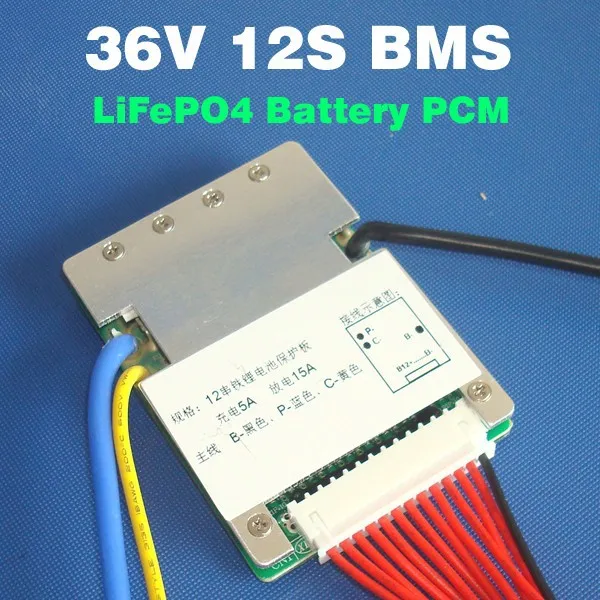

12S 15A 36V BMS LiFePO4 Cell Battery ANN Balanced E-bike UK seller UK stocks

  • UK Stock, UK seller for rapid delivery. Check out sellers shop for a variety of other DIY electrical and battery essentials

    DISCLAIMER: This item is a sophisticated electronic controller. You will need skill and knowledge to install it and use it. You will need to have done research, some available on YouTube - search "eBike School" and "Jehu Garcia" by example to find out what a bms is, what it does and especially how to install it. Wiring diagrams and how to use the bms are found on this listing. It will not be possible to return this item once opened and used, but most especially due to use or damge caused by negligence or lack of knowledge.

NOTE: This BMS is for a LiFePO4 battery and is not intended for a Li-ion battery

Item specifics
  • Brand Name:ANNBATTERY
  • Model Number:12S 36v 15a
  • Voltage:36V
  • Weight:0.1Kg
  • Size:L70*W51.5*T11mm
  • Nominal Capacity:5-50Ah
  • Type:battery protective circuit
  • Application:LiFePO4 battery
  • Use:36V lifepo4 battery pack
  • Battery Nominal Voltage:36V
  • Number in series:12S
  • Cell type:3.2v lifepo4 cell
  • Discharging Current:10-15A
  • Size:L70*W51.5*T11mm
  • Balanced current:40mA
  • is_customized:Yes
  • Components:PCBA
  • Composed Type:12S

36V 12S 15A 01


Features:


1. It is suitable for 12S 36V lifepo4 battery.

2. With functions of protection from voltage, current and temperature detection, including over-current, overvoltage, balance function, under-voltage and short circuit protection.



Electrical Characteristic (Ta=25 ºC)

No.

Test Item

Min.

Typ.

Max

Unit

1

Input Charging Voltage



43.8V



V

2

Input Charging Current



5

8

A

3

Output Discharging Current



15

18

A

4

Over-Current Discharging Protection

50

55

60

A

5

Current Consumption



20

25

uA

6

Over-Charge Protection Voltage

3.8

3.85

3.9

V

7

Over-Charge Protection Voltage Delay Time

1.0

1.5

2.0

S

8

Over-Discharge Protection Voltage

2.2

2.3

2.4

V

9

Over-Discharge Protection Voltage Delay Time

1.0

1.5

2.0

mS

10

Short Circuit Protection Release

Remove the load

11

Impedance



8

15

12

Operating Temperature

-20

+25

+50

ºC

13

Storage Temperature

-20

+25

+45

ºC

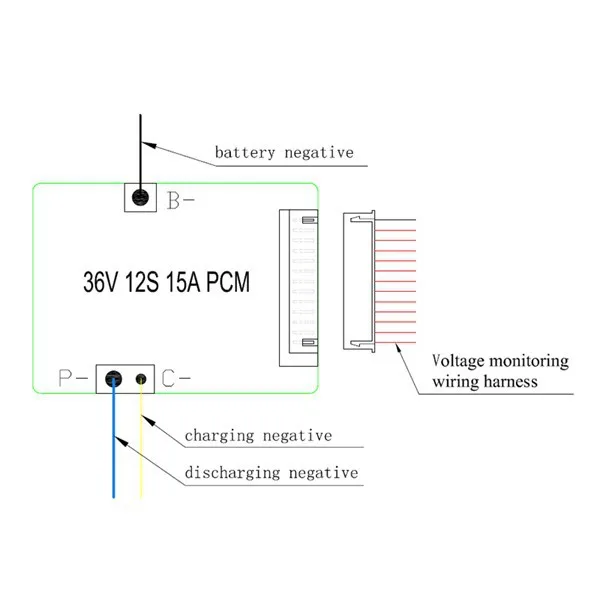

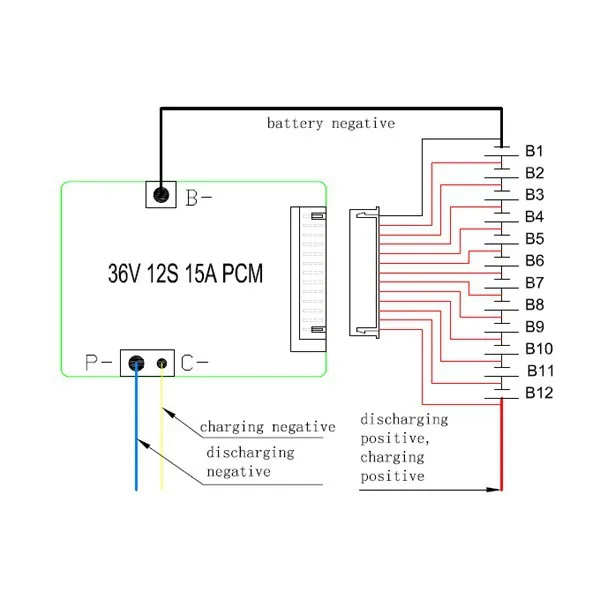

36V 12S 15A 0512S 15A PCM 0212S 15A PCM 0412S 15A PCM 0612S 15A PCM 08



12S 15A PCM 05
